2 Phase 57mm 1.8 Degree Closed Loop Nema 23 Servo Kit with full driver

Brand Name : Jkongmotor

Model Number : JK57HSN30

Certification : CE, ROHS,ISO9001

Place of Origin : Jiangsu, China (Mainland)

MOQ : 3-10pcs

Price : US$55.5~US$73.5/pcs

Payment Terms : T/T , paypal , Western Union, L/C

Supply Ability : 100000pcs/month

Delivery Time : For samples , 7-15 days / For batch , 15-25days

Packaging Details : with export carton . big quantity with pallet

Type : NEMA23 Closed loop Servo Motor

Phase : 2

No. of Leads : 4

Voltage : 3.78V

Current : 4.2A

Holding Torque : 3N.m

Step Angle : 1.8 Degree

Motor Diameter : 57mm

Motor length : 134mm

Typical applications : CNC machine, Robot

Contact Now

1) Product Description

3N.m Nema23 Closed loop Motor + driver full kit

1) Product Name: 3N.m Nema23 Closed loop servo stepper motor
Model: JK57HSN30
Number of Phase: 2
Step Angle: 1.8 Degree
No. of Leads: 4
Rated Voltage: 3.78V
Rated Current: 4.2 Amps
Holding Torque: 3N.m
Motor Diameter: 57mm
Motor length:134mm
Shaft Length: 21mm
Shaft Diameter: 7.5mm

2) Product Name: 3N.m Nema23 Closed loop servo stepper driver
Model:JK-HSD57
Voltage Range: 24-80VDC
Microstep/pulse: 25600/rev

3)Typical applications: CNC machine, Robot

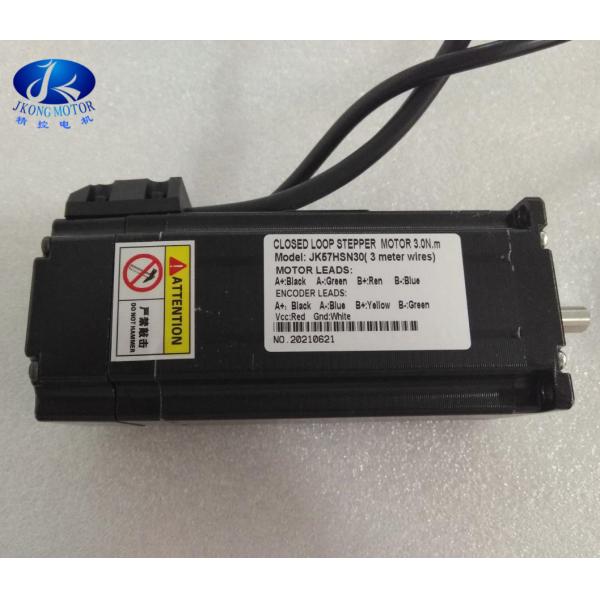

2) Product Images
2 Phase 57mm 1.8 Degree Closed Loop Nema 23 Servo Kit with full driver
2 Phase 57mm 1.8 Degree Closed Loop Nema 23 Servo Kit with full driver
2 Phase 57mm 1.8 Degree Closed Loop Nema 23 Servo Kit with full driver
3) Product Drawings
2 Phase 57mm 1.8 Degree Closed Loop Nema 23 Servo Kit with full driver
4) Other Models
Closed Loop Servo Stepper Motor /
Easy Servo Stepper Motor Series
Motor series
Phase No.
Step angle
Leads No.
Motor size
Holding Torque
Nema 23
2 phase
1.8 degree
4
57x57mm
1.8
N.m
Nema 23
2 phase
1.8 degree
4
57x57mm
2.2
N.m
Nema 23
2 phase
1.8 degree
4
57x57mm
3.1
N.m
Nema 24
2 phase
1.8 degree
4
60x60mm
3.1
N.m
Nema 24
2 phase
1.8 degree
4
60x60mm
4
N.m
Nema 34
2 phase
1.8 degree
4
86x86mm
4.5
N.m
Nema 34
3 phase
1.8 degree
4
86x86mm
8.5
N.m
Nema 34
2 phase
1.8 degree
4
86x86mm
12
N.m
Nema 42
2 phase
1.2 degree
4
110x110mm
20
N.m
Nema 52
3 phase
1.2 degree
4
130x130mm
30
N.m
Above only for representative products, products of special request can be made according to the customer request.

5) Other Products

2 Phase 57mm 1.8 Degree Closed Loop Nema 23 Servo Kit with full driver

6) Company Profile

CHANGZHOU JKONGMOTOR CO.,LTD (Changzhou Jingkong Motor&Electric Appliance Co.,Ltd)is an ISO9001 Professional manufacturer. Was established in 2011 year. We are a professional manufacturer in Changzhou city, China. Production Capacity exceeds more than 1 million motors per year. Our Company offers three major series of products: Hybrid Stepper motors, Brushless Dc motor and Dc Brush motor. We are always continues develop new type models.


We are also have several joint venture companies who specialized in the production of AC servo motor, PM stepper motors, Spindle motor and Motor drivers. We export our motors to more than 30 countries Such as United States, Germany, Russia, Turkey, Brazil and so on.


Jkongmotor sold to major manufacturing Companies for Industry of automation, medical and health care equipment, 3d printer machines, packing devices, Information Technology, household appliance products.


We have an Engineering team with many years of experience in application Engineering, design Engineering with the latest advances equipment. Our Engineering Staff provides the finest quality product with service after the product is delivered to our Customers.
